Video installation

Http://youtu.be/DP_fPtEP8Kc

Mcu firmware update file, installation guide video link

https://1drv.ms/u/s!AkaPGIX95QCFgQAcuHNIwI8s3Xj_?e=hjJv2V

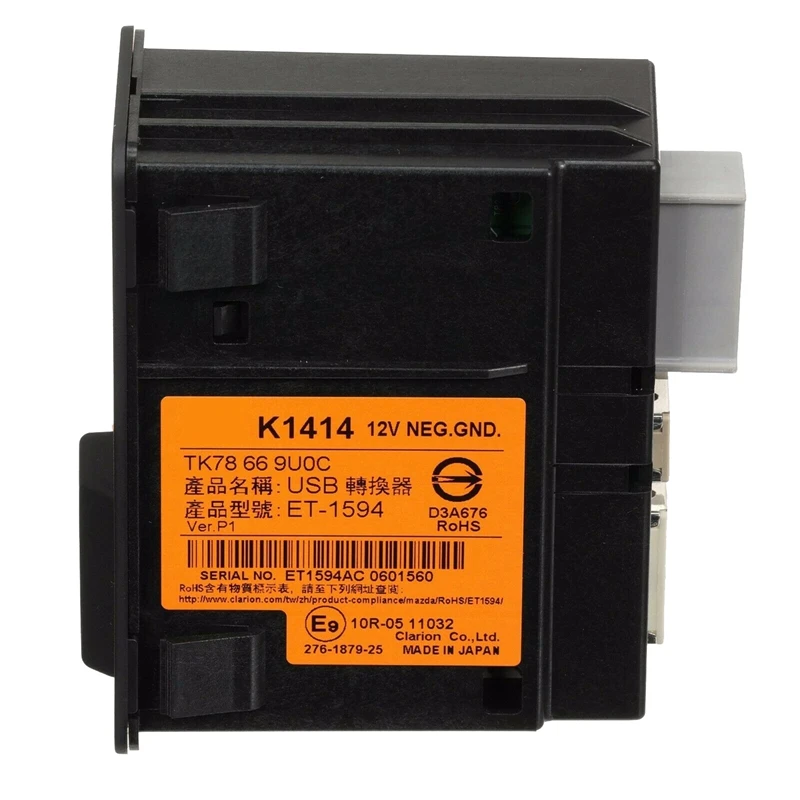

This kit includes 1 cable kit C922-V6-605A and USB hub TK78-66-9U0C

The firmware must be updated first before starting the installation. If an older version of the cmu software is being used, the self-compatible usb hub carplay / android may not be recognized. The software must be v70.00.21 or later. If you are not sure of updating the software. Once the cmu has been attached to the usb hub compatible with cars / android, the software cannot be updated.

Stay connected to your world while keeping your eyes focused on the road with our smartphone screen mirroring kit. This update kit improves the mazda connect infotainment system with apple carplay by allowing you to access maps, playlists, contacts and applications compatible with your voice through the crab. Siri will also read incoming text messages and allow you to respond without taking your hands off the wheel. You can also browse the apple carplay features with the ideally positioned multifunction commander control. For android users, this update also adds automatic android functionality.

Compatible with the following models

Fits: MX-5 2016 to 2020
Fits: CX-3 2016 to 2019
Fits: CX-5 2015 to 2020
Fits: CX-9 2016 to 2020
Settings: mazda 2 2016 to 2019
Settings: mazda 3 2014 to 2018
Adjustments: mazda 6 2016 to 2020

Compatible with the following hosts

Genuine mazda carplay + android car

Installationinstructions are here! .....
This official mazda carplay + androidauto is for all mazda models that have mazda connect or mzd connect, these
Installation instructions must be followed exactly or you will never get cp / aa to work. Cp / aa comes together
As a total installation, these two new interfaces cannot be separated, altered or eliminated.
All of your existing mazda-mzd connect user / display features still remain and still function as normal.
The following genuine mazda details are for the current mazda worldwide using the factory installed mazda connect or mzd
Connect color touch screen, your existing new car warranty is not affected.

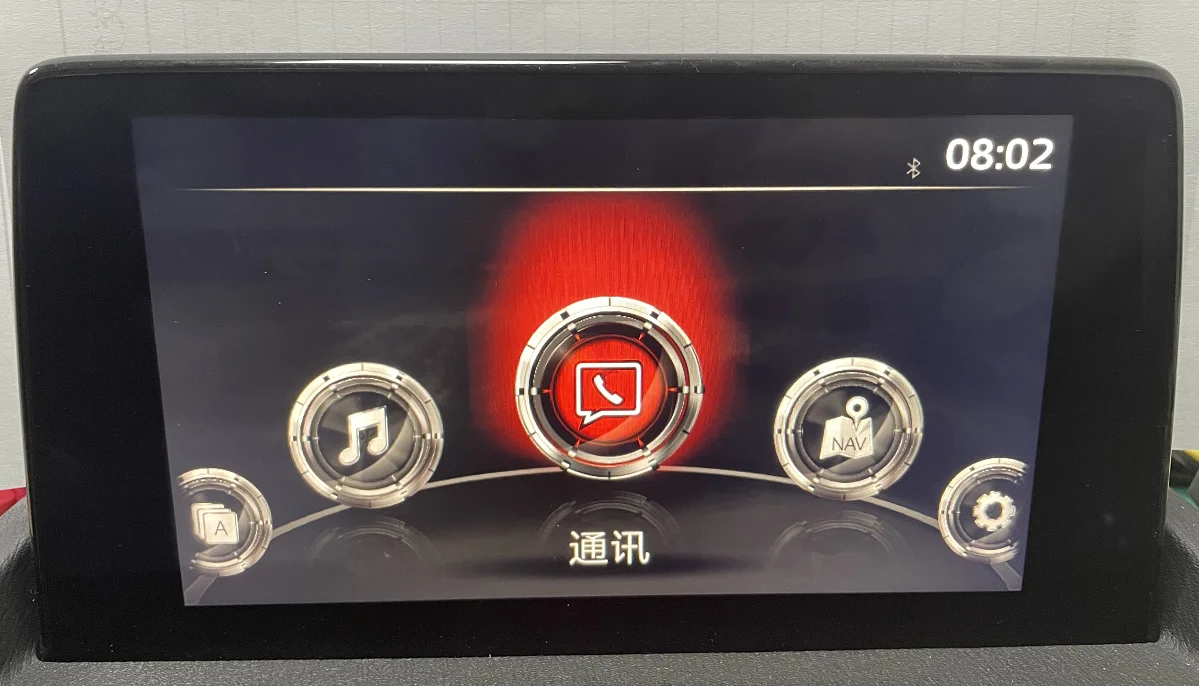

See this image directly below the connect user interface (ui), if your mazda has this home screen design, then yes that
Genuine carplay and androidauto retro update is for your mazda if you want to do an auto or home installation

Below the image is the final result after having installed the 70.00.335c firmware (the correct region) first, and then run + use this new 70s firmware, and then install the two new genuine mazda parts in pink last .

Mazda genuine parts is precisely for the model years 2014 to today which covers mazda 2, mazda 3, mazda 6 #,
Mazda CX-3, CX-5 #, CX-8, CX-9 and MX-5 / miata / rf .
# This genuine mazda cp / aa retrofit parts kit and firmware / software is not for 1st generation mazda CX-5 and mazda 6
using the factory tomtom in-dash navi.
Note: if your new 2019 mazda mazda models (listed above) don't come standard with factory fitted cp / aa but have anyany '
firmware version 70.00.xxxx already installed from mazda factory, then all you need to buy and install are o
Two mazda parts listed below in pink for your region to get fully functioning c / a.
These details and parts do not apply to all new gen 2019 mazda 3 (bp) or 2020 mazda CX-30 (dm).
Everything you need to know is written here, with all the links to download files, tips and instructions,
Please follow these details 100% exactly. Download links below in lime green, click ..
Yes you can also install this new updated 70.00.352b firmware (specific to the region) just without doing the hardware
Installation of the two new genuine mazda parts.
When installing this new firmware of 70 only your car will have the latest connect operating system available
And it is future cp / aa ready ... which can be done at any later date or never.
See the Changelog. Pdf on the server for all current bug fixes and features updated to 70.00.352b firmware.
If later on you want a cp / aa working feature you should still install the two new genuine mazda parts.
New CHANGELOGs. PDF list of changes and fixes is also now on the server.
********************************
Below will show you how and where to go to get the genuine mazda firmware files for free and where to download
The videos are very good. Pdf Instructions. Modfreakz hosts everything on its hi-drive server.
The purchase is only for genuine mazda carplay with androidauto and will not work without installing new 70s s
Firmware first and then the two new genuine mazda parts installed in second and third. In that order. .. TIME COURSE!
********************************
New revised firmware update instructions. pdf is now on the server .....
New single 70s firmware file is now out * ......
No more separate security reinstall files +. up, now just an update.up 'update file.
* The method in these new updates is now just a single update update file. up 'to be performed.
You select either a 'Package' or '' Update Package '' Reinstallation AFTER 'SEARCHING' file from
Your usb mounted driveusb flash drivedrive which contains the correct file 70.00.352b for your region.
**********************************
All other new mazda parts are a must-do requirement as the addition process and installing firmware cp / aa and
O must have genuine mazda parts has not changed. Do not buy or use any other systems "assembled last year" like this one
will corrupt the use of this latest updated genuine mazda 70s firmware listed below.
Note: there are some inexpensive options to install separately androidauto only without carplay and the 2 new mazda parts listed
Below in pink, I strongly advise not to go this route as you should use the old and outdated 59 firmware which is buggy
And sometimes very unreliable with communication errors infecting other hardware working systems inside your car such as, engine,
ic control modules or display screen.
See the long list of newly added changelog, you must use only the latest mazda firmware or you will have problems as listed in the
Changelog. The genuine mazda firmware here is free and genuine mazda parts are not that expensive and mazda is still
maintaining firmware updates for a few more years.
********************************
Read the read read-me-me notices, plus all firmware numbers and genuine mazda part numbers for your correct region + free
Download links are all below .. Links download links below in lime green, click ..
** ******************************
You must install all new mazda carplay / androidauto 70.00.352b firmware first (like. File above) for your region.
Before removing trim parts and before installing new usb cables and
Before installing new aux caux aux module unit (one with orange label).
********************************
