Full Function:Mirrorlink,GPS Navi,WiFi,Rear AUX,Bluetooth,Reverse image,FLAC/APE,Capacitive screen,Rear USB,HD Video,Driving Recorder,FM Radio

4-core CPU

C ortex-A74-core processor Use 28nm/ 40nm

Manufacturing process Based on ARMv7- Architecture

of energy efficient processors Focus on the balance

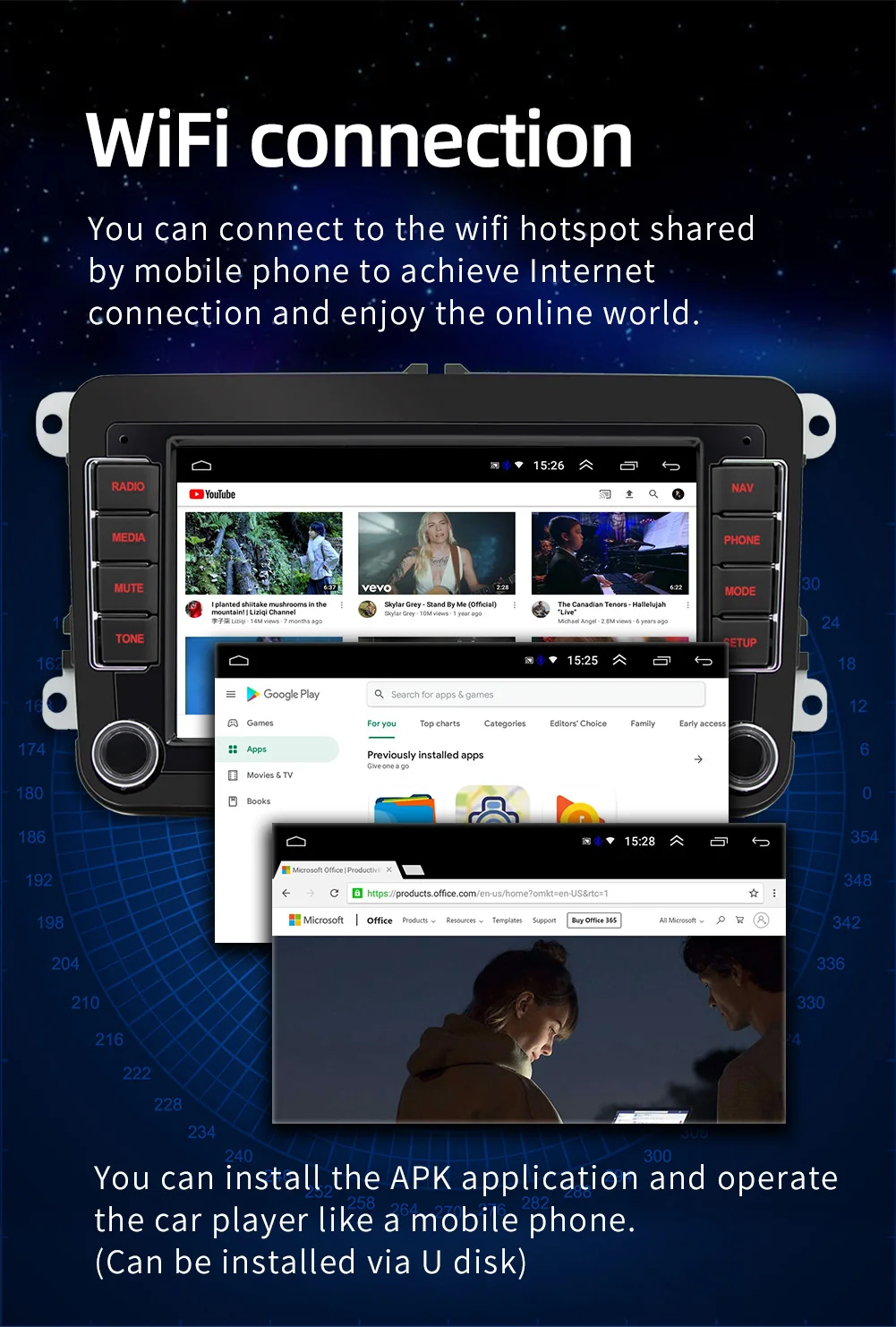

between performance and power consumptionWiFi connection

You can connect to the wifi hotspot shared

by mobile phone to achieve Internet

connection and enjoy the online world.

You can install the APK application and operate

the car player like a mobile phone.

(Can be installed via U disk)

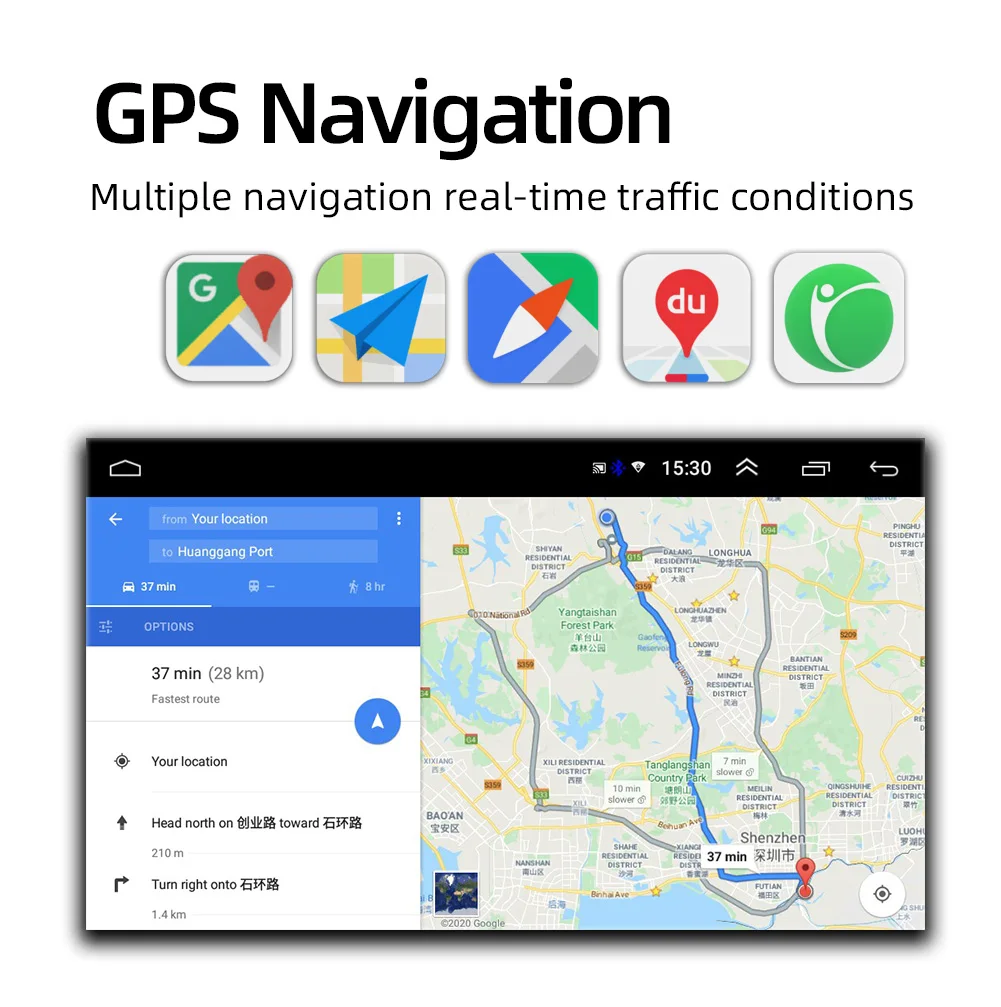

GPS Navigation

Multiple navigation real-time traffic conditionsBluetooth 4.0

Bluetooth connection technology

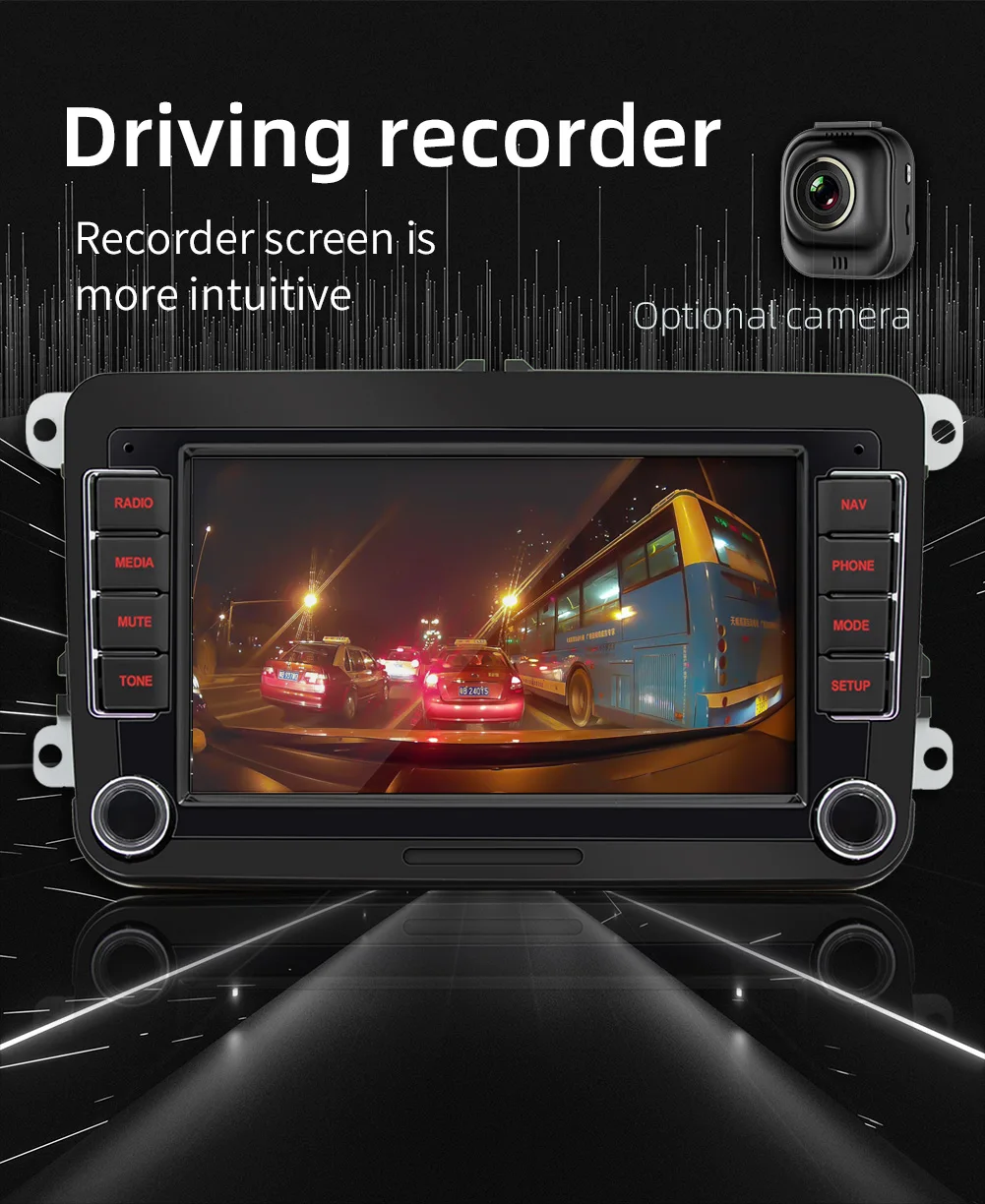

Ultra-low latency; more stable transmissionDriving recorder

Recorderscreen is

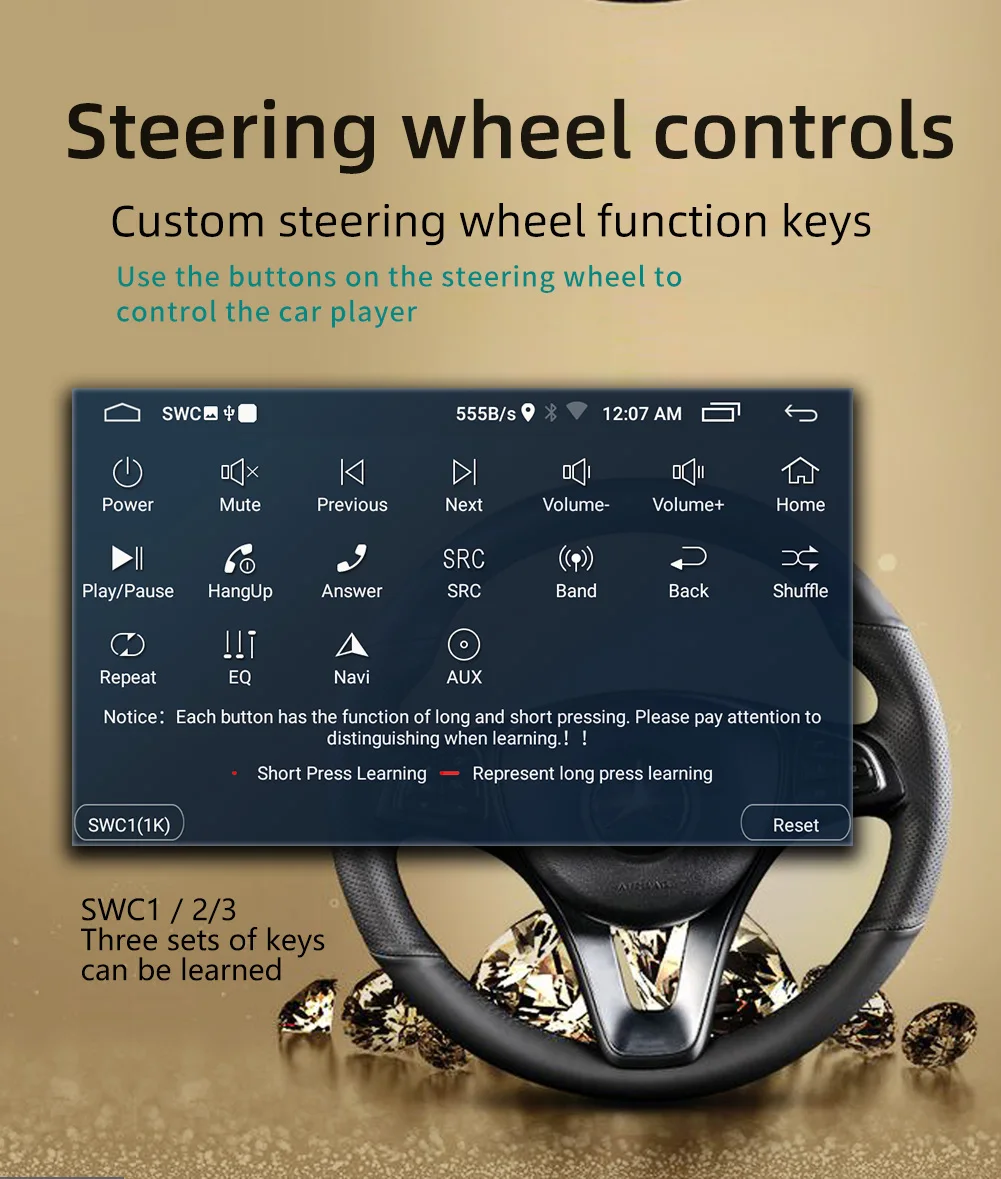

more intuitive                                             Optional cameraSteering wheel controls

Custom steering wheel function keys

Use the buttons on the steering wheel to

control the car player

SWC1 / 2/3

Three sets of keys

can be learned

Mirror Link

Phone screen is projected to car player

Android support USB / WiFi                                                         iPhone support WiFi projec-

projection screen and when                                                        tion screen, Can put the

the USB cable is connected,                                                       phone screen to the player

it can be controlled on the

mobile phone anid car screen

Reverse image

Automatically switch in reverse gear

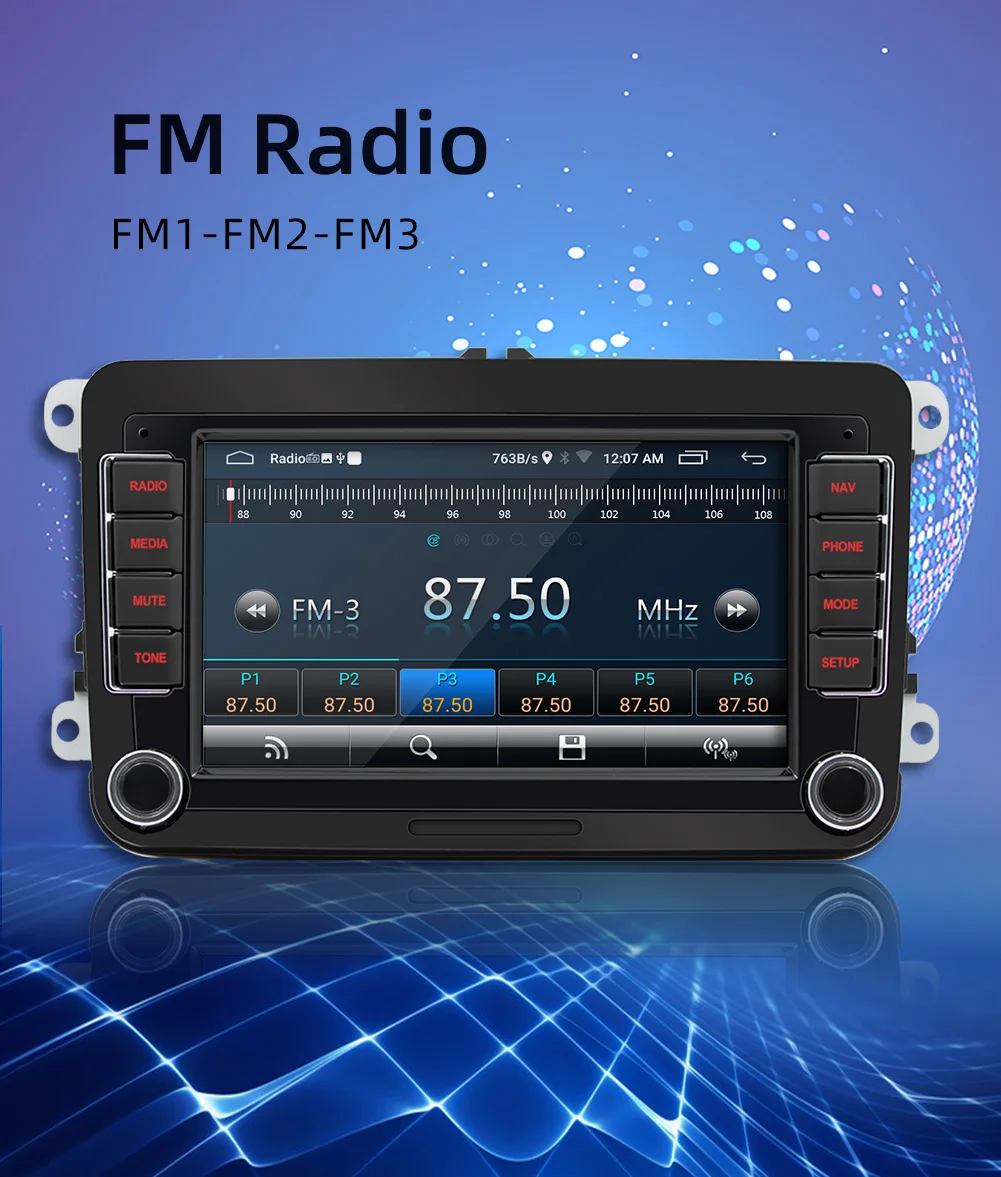

Optional cameraFM Radio

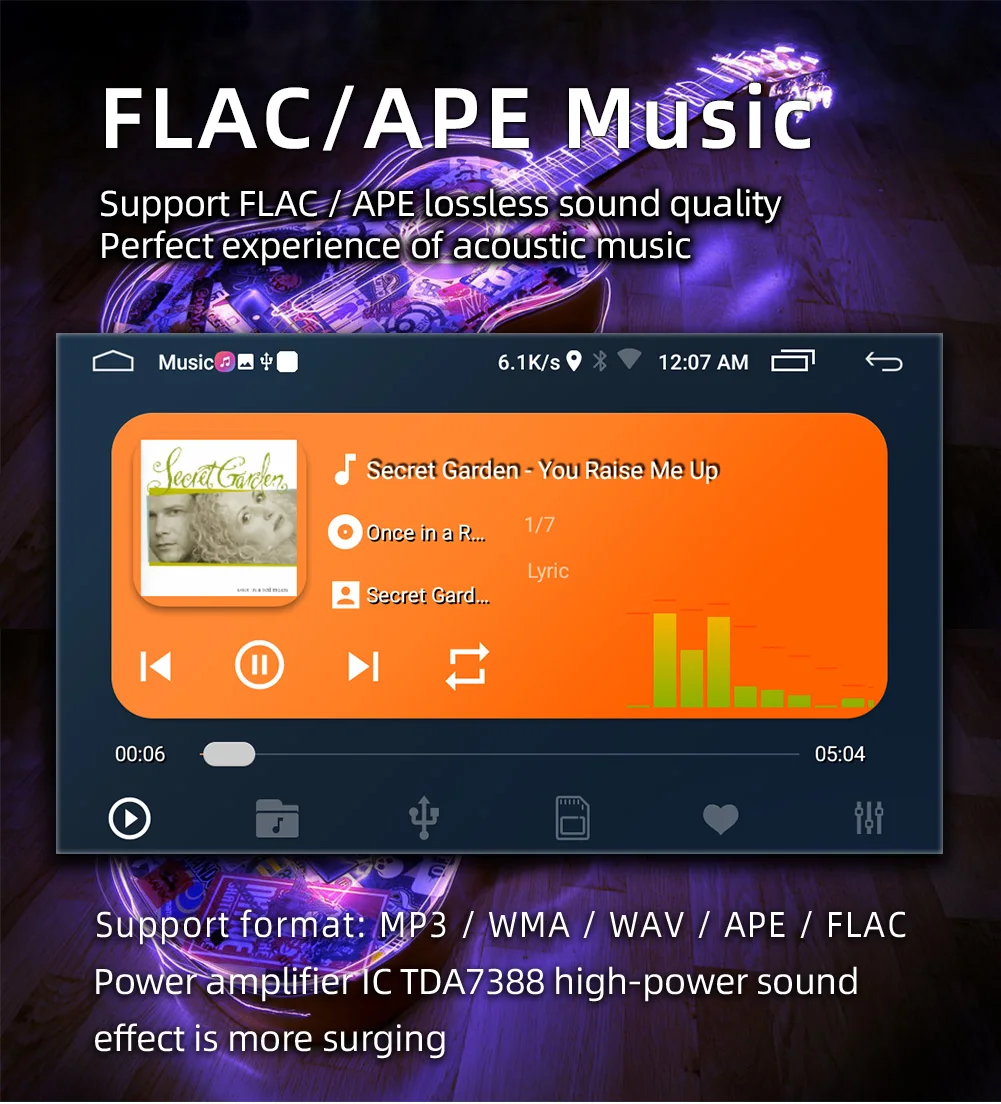

FM1-FM2-FM3FL AC/APE Music

Support FLAC EAPE lossless sound quality

Perfect experienceof acoustic music

support format: MP3 / WMA / WAV / APE / FLAC

Power amplifier1C TDA7388 high-power sound

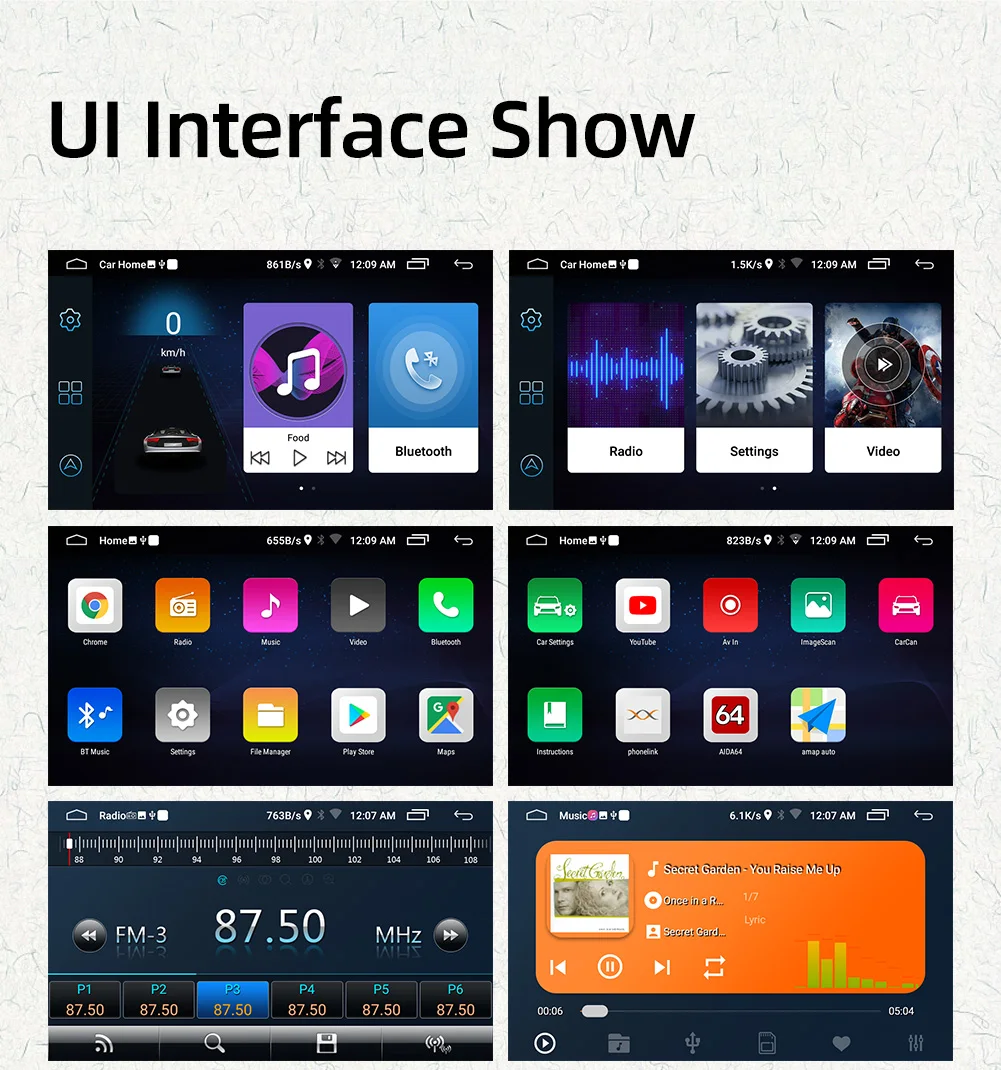

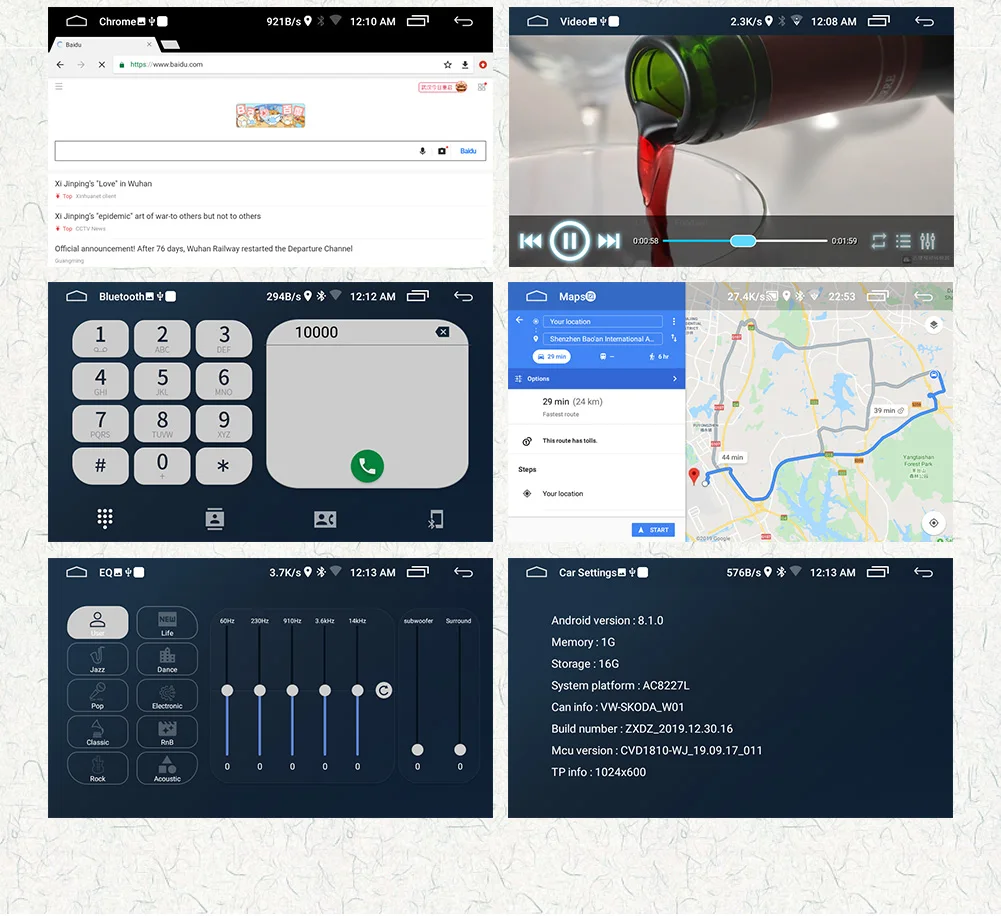

effect is more surgingUI Interface ShowHD Video

Support 1080P HD video

Display resolution 1024x600 picture is

clearer and more delicate

Support format: RM / RMVB / AVI / MP4 / MKV / 3GP, etc.

Product Spec.

Model: 9070 Volkswagen 7 inch Android System: Android 10.1

Screen size: 7-inch capacitive screen

CPU: A7 1.3GHzx4

Resolution: 1024x600

RAM: 1G

Radio band: 87.5~108.0MHz

ROM: 16G

Play mode: Rear USB/Bluetooth/Rear AUX Working temperature: -10~ 60 °C

Chip: QN8035 (radio) .

USB: 2xUSB2.0(Rear)

TDA7388 (power amplifier)

Car logo replacement: support

Reversing image: support (camera needs to be optional)

Mirror Link: support (Android / iPhone)

Original car steering wheel control: support

Supported audio formats: MP3/WMA/WAV/APE/FLAC.

Supported video formats: RM/RMVB/AVI/MP4/MKV/3GP.

RCA: 2 audio inputs, 2 audio outputs, 1 video output, 1 reversing video input, 1 video inputs

unit size: Volkswagen giftbox size: 212x121x334mm(Leather box)

1pcs gross weight: 1.125KG Carton size: 650x440x355mm(10 PCS)

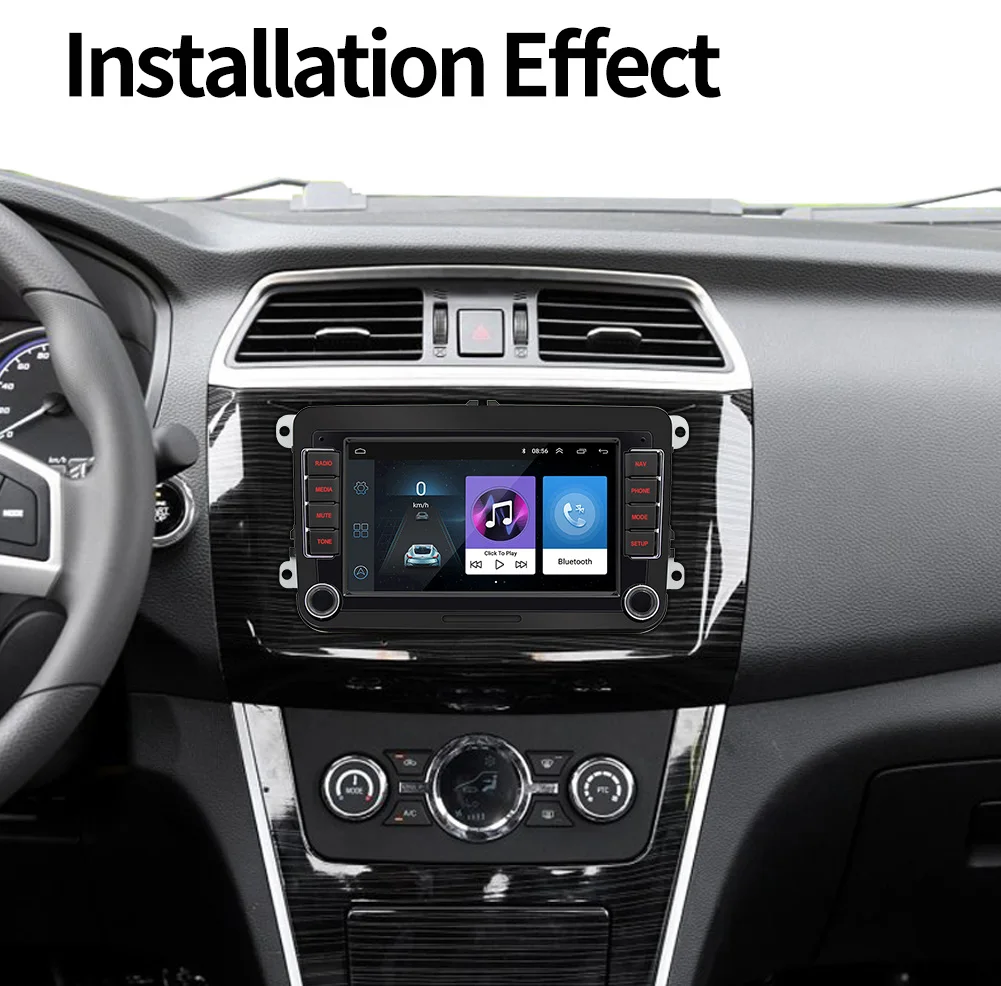

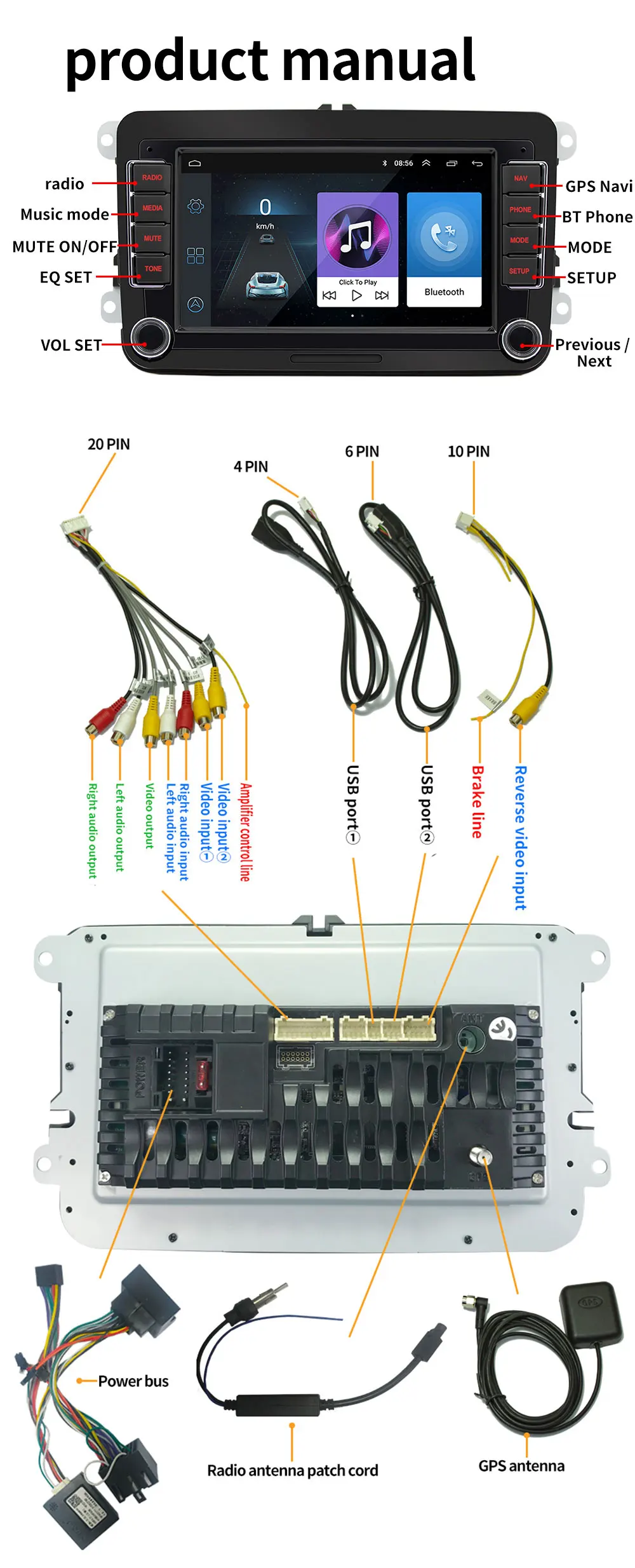

FCL gross weight: 12KGproduct manualInstallation Effect
Model:9070 Volkswagen 7 inch Android
Voltage: 12V
Type: Seven-inch Android dedicated navigation
System: Android
Configuration: Quad-core 1G+16G
Software Solution: Palm News
Screen model: 7 inch HD
Screen size: 7 inches
Screen resolution: 1024*600
Panel size: Volkswagen dedicated size
Panel light: red
Color box size 212*121*334 mm (cowhide box)
FCL weight: 12kg
Host depth: 27mm
Single machine: 1.125KG
Mobile phone interconnection: support (Apple/Android)
GPS navigation: support
Radio band: FM
Radio chip: QN8035
Languages: Indonesian/Malay/Czech/Danish/German/English/Spanish/Filipino/French/Croatian/Italian
Latvian/Lithuanian/Hungarian/Dutch/Norwegian Bokmal/Polish/Portuguese/Romanian
Slovak/Finnish/Swedish/Vietnamese/Turkish/Greek/Bulgarian/Russian/Ukrainian/Hebrew
Urdu/Arabic/Persian/Hindi/Bengali/Thai/Khmer/Korean/Chinese/Traditional Chinese/Japanese
Power: 60W
Working temperature: -10~60 degrees
Reversing image: support (camera optional)
Brake prompt function: support
Steering wheel control function: support
Bluetooth model: version 4.0
Power amplifier chip: TDA7388
Radio frequency: FM 87.5~108MHz
Video output: Yes
Dual screen with display: support
Built-in offline map: Europe
Wireless WIFI: support
Protocol box: standard protocol box
High and low wiring materials: high and low wiring materials are fully equipped
Remote control: none
Square control line: Yes
USB interface and version: 2 rear tail line USB
Reset button: Yes
Button: physical button
RCA terminal introduction: 2 audio output, 2 audio input, 2 video input, 1 reversing input, 1 video output, 1 subwoofer output
Front MIC support
DVR function: support
DAB function: None
OBD function: None
TV function: None
DVD movement model: None
4G/3G: None
Car logo replacement: support
Supported audio format: MP3/WMA/WAV/APE/FLAC
Supported video format: RM/RMVB/AVI/MP4/MKV/3GP
Supported image format: JPG
Factory setting password: 000000

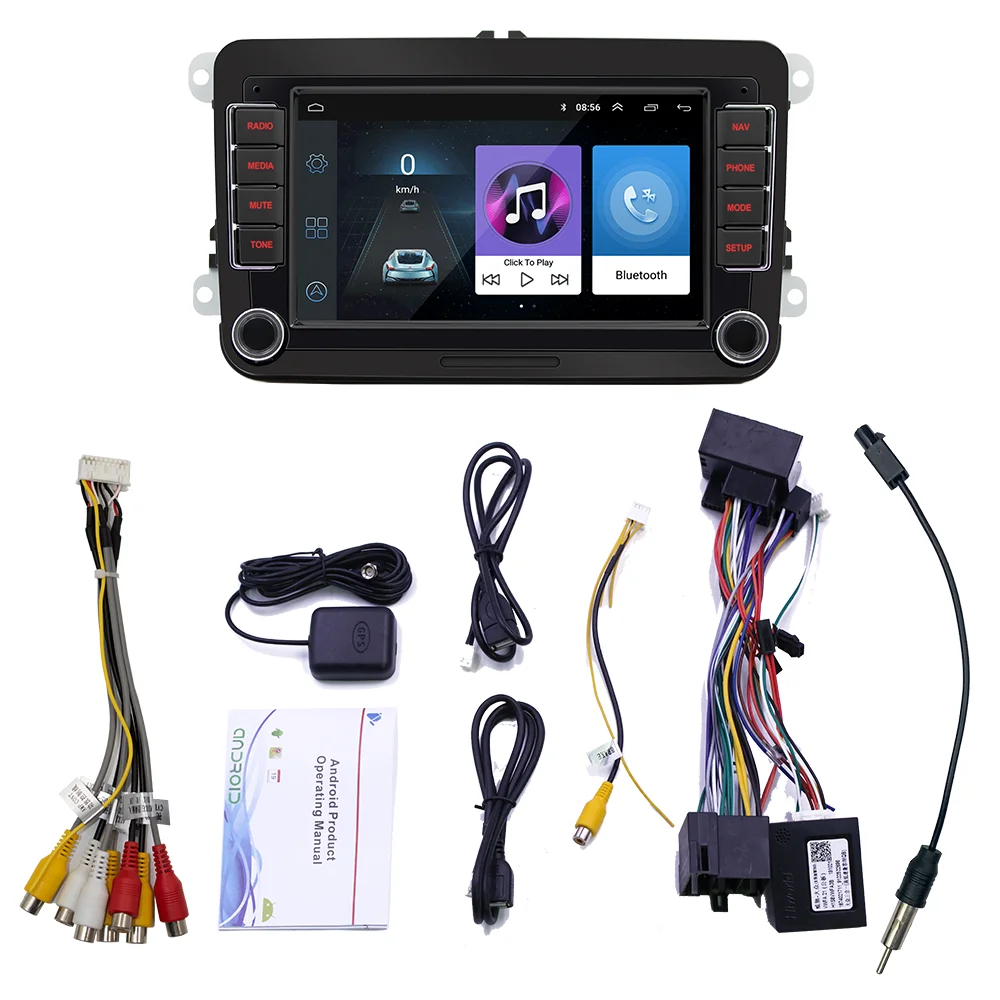

Complete machine list: host + GPS antenna + high and low configuration universal line + RCA line + USB adapter cable + protocol box
basic skills
''1. Radio (FM)
2. Read U disk (audio/video/picture)
3.AUX function
4. Bluetooth function
5. RCA audio output can be connected to subwoofer
6. Rear view function (camera option)
7. Video input
8. Original car steering wheel learning function
9. Android recorder can be installed
10. WIFI Internet
11.GPS navigation
12. Mobile phone interconnection (Android/Apple)
13. App can be installed'
