Note:

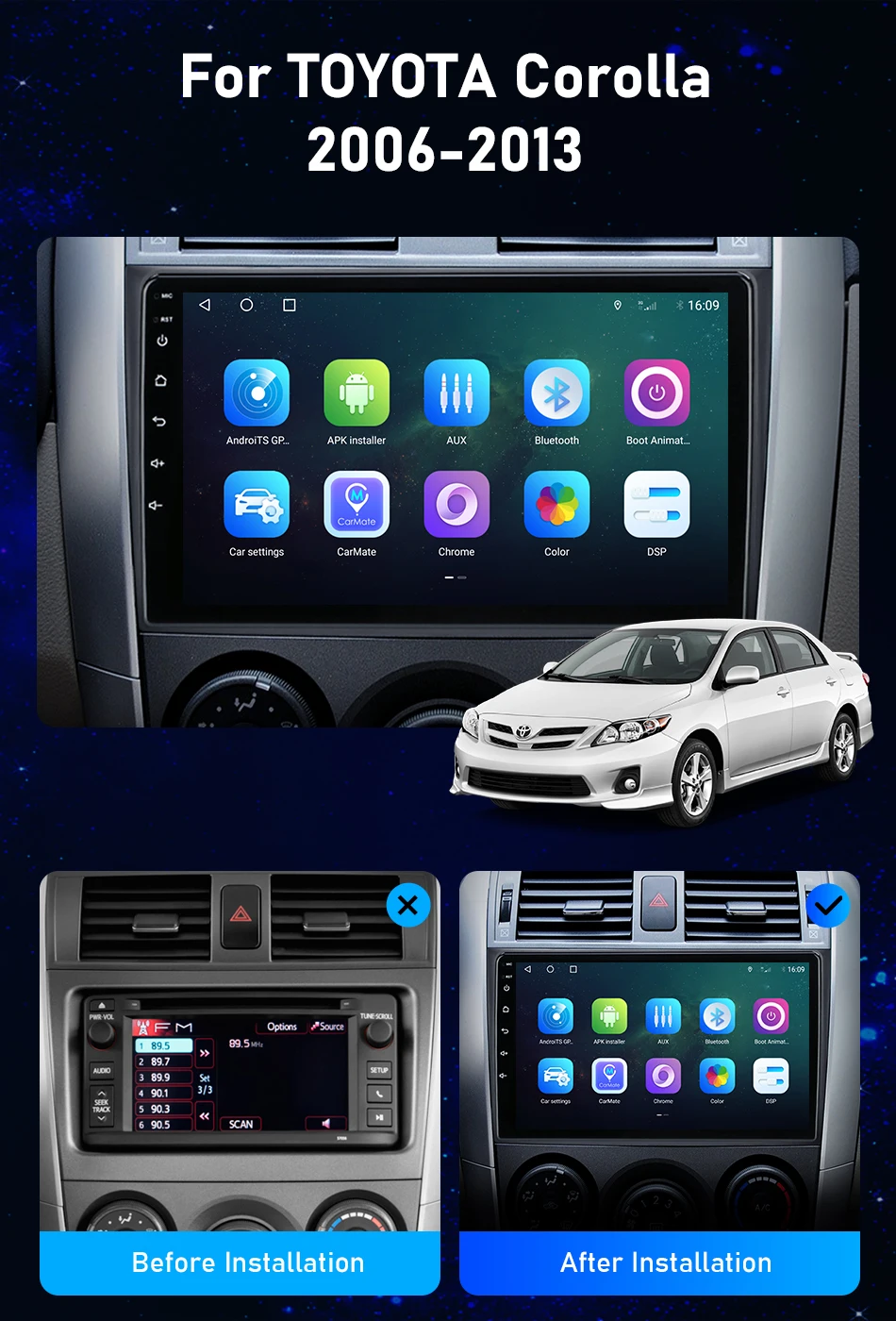

   If your car is AURIS 2007-2011 instead of Corolla, please do not buy this car DVD because it is different in height, so it is not suitable.

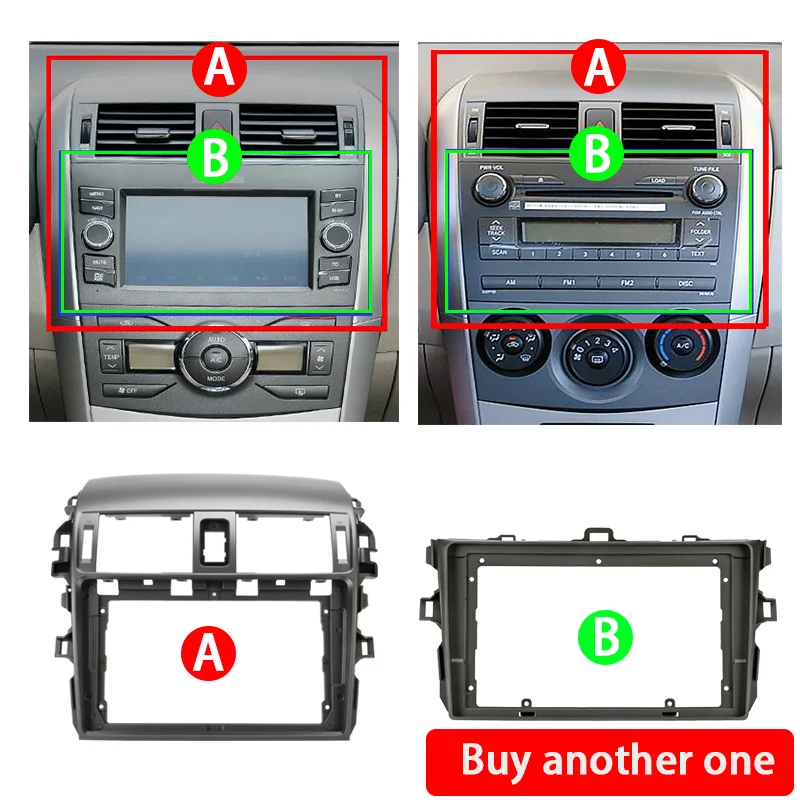

1.If you want to replace the overall frame ,please buy A frame
  2.If you want to keep the air conditioning panel of original car ,please buy B frame
  3. The Auris model can't suitable with this car radio

(If you want to buy A, please click "Buy another one" in the picture below to go to the link to buy A)

☆☆☆Connector confirmation☆☆☆
1. This standard connector is sent by default, and it is connected by Pin to pin.

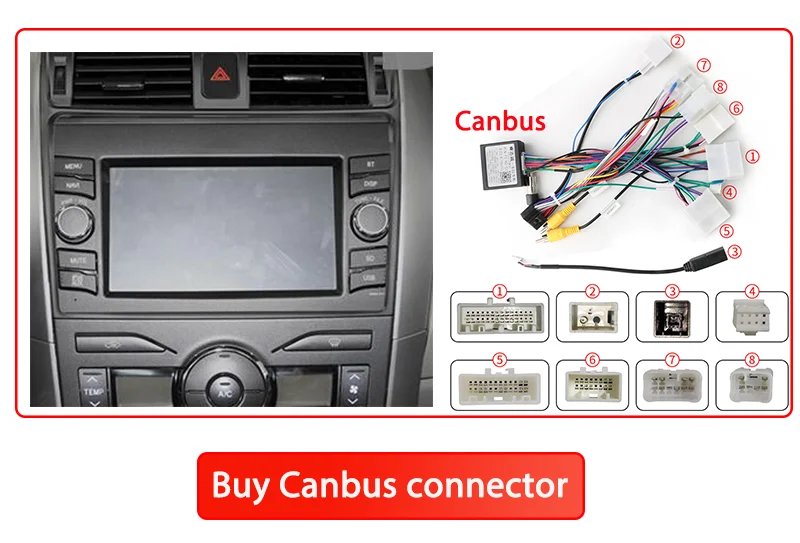

2. If your car's center console is a large screen, and the original car contains a factory reversing camera, please purchase the canbus cable below to fit your model.Please click "Buy Canbus Connector" in the picture to buy Canbus cable

Purchase FAQ:

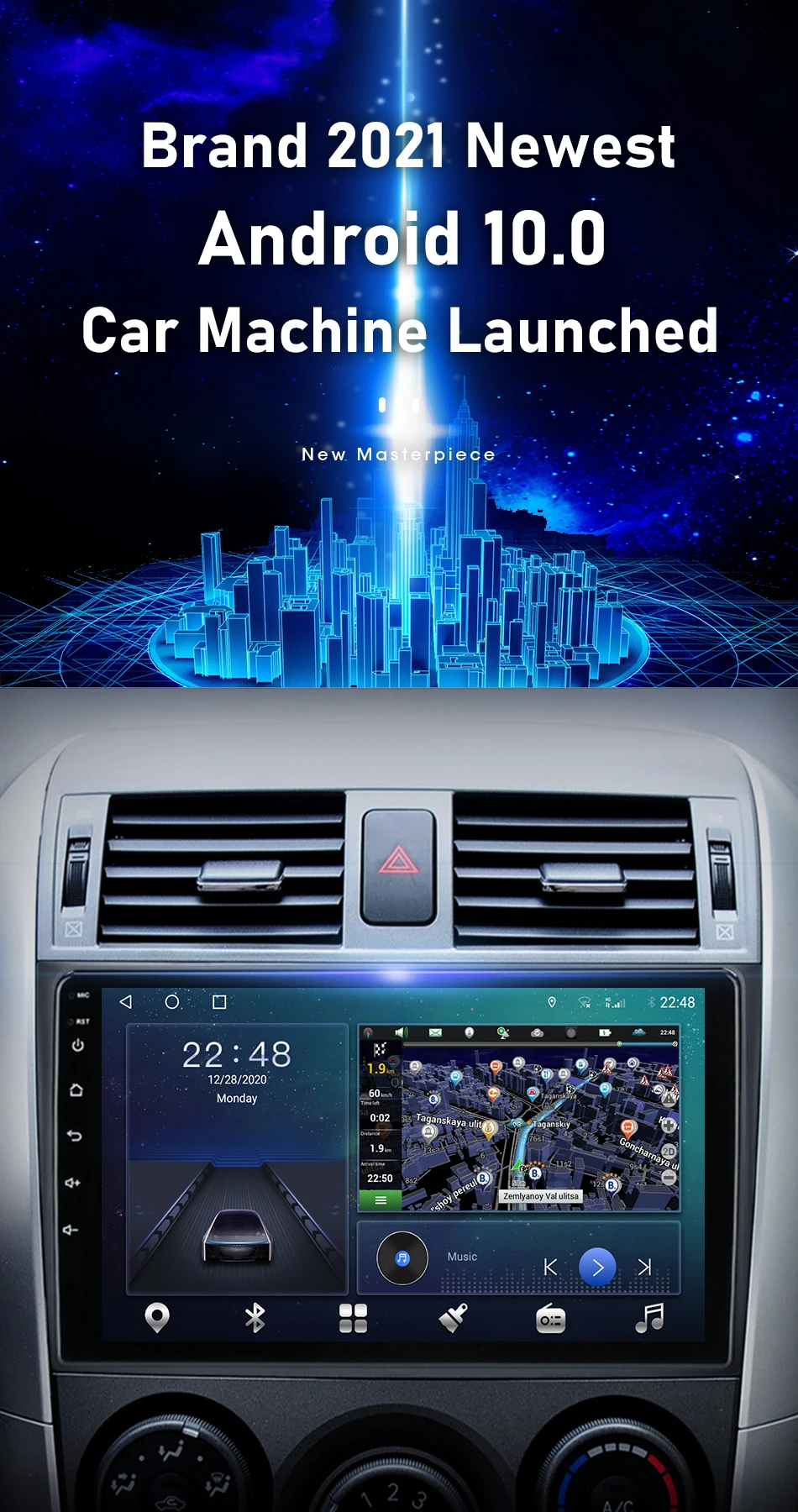

The latest technology, using advanced Android nav
igation solutions, supports more custom settings and opens more options to users.


All radio models will install offline maps for you for free

All radio models support the steering wheel control of the original car

Support split screen display of any 2 applications, combining at will.

Support video and DVR application  Of Floating Window, customize the display position, and make your driving experience full of cool colors.

The default built-in adjustment is 48EQ, and the sound surround can be set at the same time, allowing you to immerse yourself in the wonderful music.

T10 Support multiple 4G Network bands

Purchase of additional features(Only for T10-1,T10-2,T10-3 models):
Easy Connection:
1. Mobile phone mirror connection (Android and IOS)
2. Dual channel connection (both head unit and mobile phone can be operated.)
Colorful lights:
 The 7 colors of the radio button on the side can be adjusted

Bluetooth 5.0: Ultra-long-distance reception of Bluetooth signal, stable signal, anti-interference

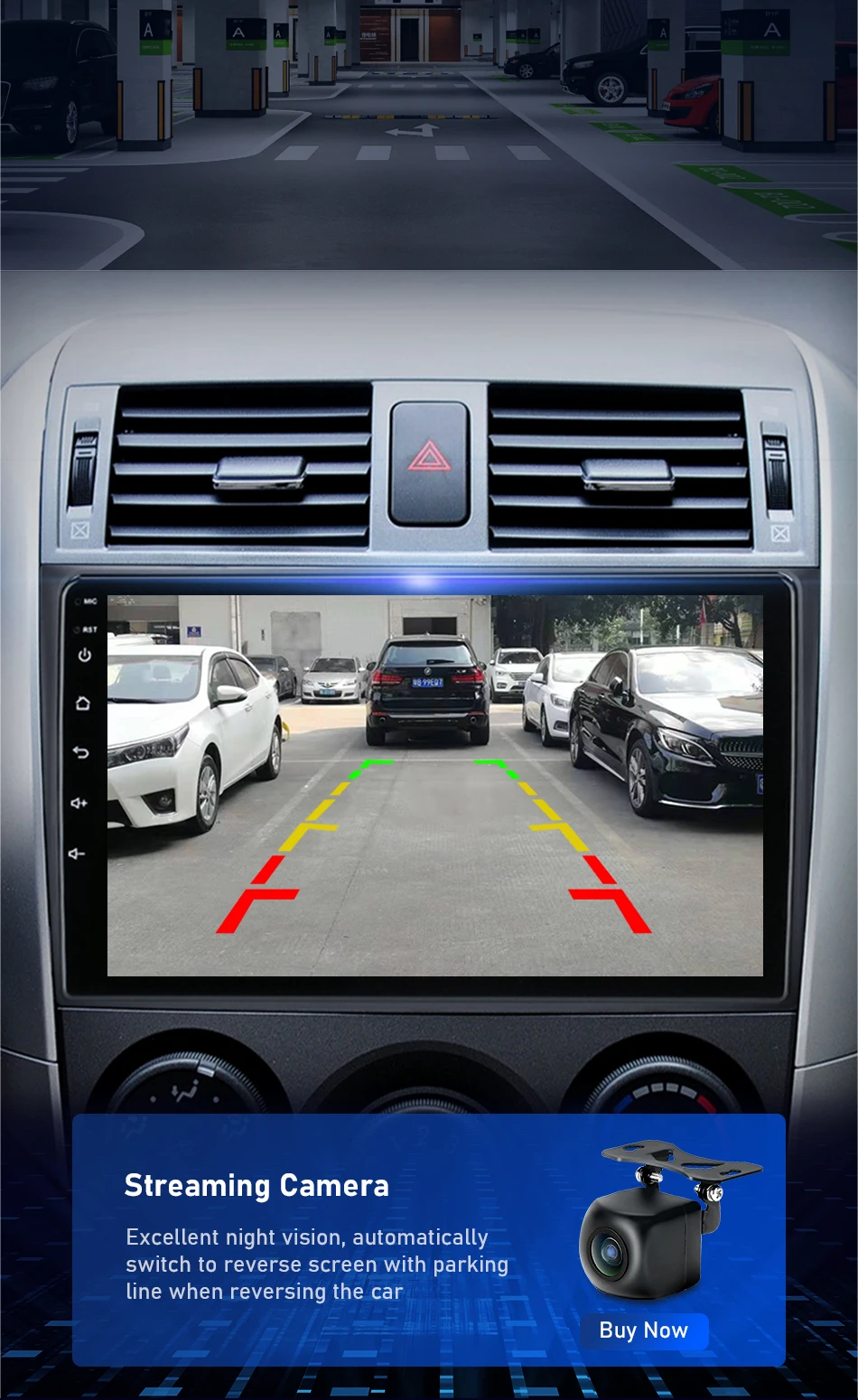

Supports reverse display. When the car is in the reverse mode, the radio will instantly switch to the screen at the back of the car to ensure your driving safety.

If you don't have the original camera, you can buy it by clicking "BUY NOW" in the picture below.

Supports connection to ADAS DVR. ADAS DVR has multiple built-in assistive driving technologies, inserting high-quality TF memory card to record every moment of your driving.

More and more national automobile manufacturing standards require that vehicles must be equipped with tire pressure alarm devices. The importance of tire pressure alarm devices can be seen. Click on the picture below to buy a tire pressure alarm device, connect a radio, and feedback your tire status in real time.

T9 supports mirroring connection of Android and IOS mobile phones, the screen of the mobile phone is displayed on the radio screen, driving is more convenient and intelligent



FAQ:

1.Why can't turn on the car radio ?
1.1 Please check the Voltage of car radio : 12V
1.2 When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
1.3Replace the same type of insurance to test the car radio. Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

2.Why the car radio will show "No Signal" when we reversing?
Please check if the camera's line is properly connected to the car radio. Note:The video port of rear camera must insert the "CAMIN" port of car radio.

3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?
Please turn off the "Video Warning" function in the settings,then will be OK.

4.Why can't search FM?
4.1: No radio antenna inserted;
4.2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;
4.3: The signal of your location is not good. Please go to a better place to test again
4.4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

5.Why can't connect the Bluetooth of car radio?
5.1.Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
5.2.Please try to use another mobile phone to test this function. Please check if the Bluetooth receiving antenna is properly connected All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.

6: Bluetooth signal is weak, WiFi signal is weak:
please check and reconnect the Yellow rear Camera input connector, there are 2 short cables, they are the extension cords of the Bluetooth antenna and the WiFi antenna, or you can extend them to enhance the signal.

7: The navigation map does not work,
check whether the GPS has a signal, click GPS signal detection, if there is a signal, then reinstall a new map or open the mobile WiFi hotspot. If there is no GPS signal, leave the garage and test the GPS interface voltage on the road. The voltage must be 3.3V, otherwise the GPS antenna should be replaced.

8: The screen display is abnormal,
click the one-key recovery button, if it can't be solved, remove the screw on the back, check whether the screen cable is loose, and reconnect the screen cable.

9: Abnormal sound:
1 Check whether the original car cable has been modified by another car owner. If so, please check the speaker cable and reconnect it.
2 Check whether there is an original car or a modif

10:Radio setting interface password:
T6 password: 111333, 1234, 1617, 16176699
K3/T10/T3L/T3L plus: 123456,8888,7890,000000
Programmer interface password: 7890 plus current time. For example, at 11 o'clock it is 789011. If it is 12 o'clock, it is 789012

11:The radio cannot be turned on
11.1. The condition for the radio to turn on is that ACC (G3) and 12V (G2) are connected to the positive pole of the car's 12V power supply, and G1 is connected to the negative pole of the power supply. There may be a very small probability that the power cord does not match your car. You can directly connect these 3 power cords Connect the power cord of the car without the radio
11.2. It may be that the connecting wire of the radio came off during transportation, just open the back cover to check and reconnect the connecting wire inside the radio
11.3. If you can't turn on after checking the above steps, please send a video to us for confirmation. The video needs to show that the power cord is normally connected, and test the connection cord with an electric meter to be 12V.
