General:

-Power Supply: DC 12V (allowance range: 10.8-14.5V)

-Max. Current: 10A

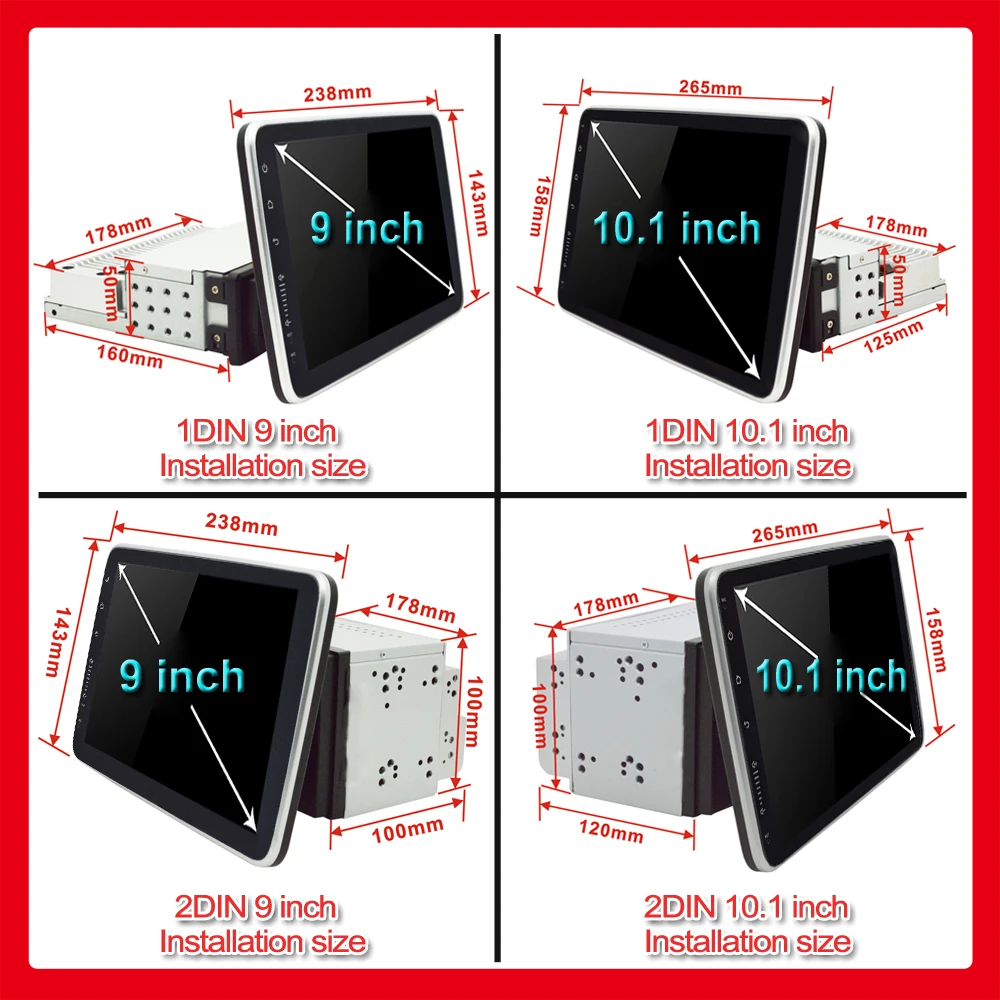

-Screen Size: 9/10.1 inch

System:

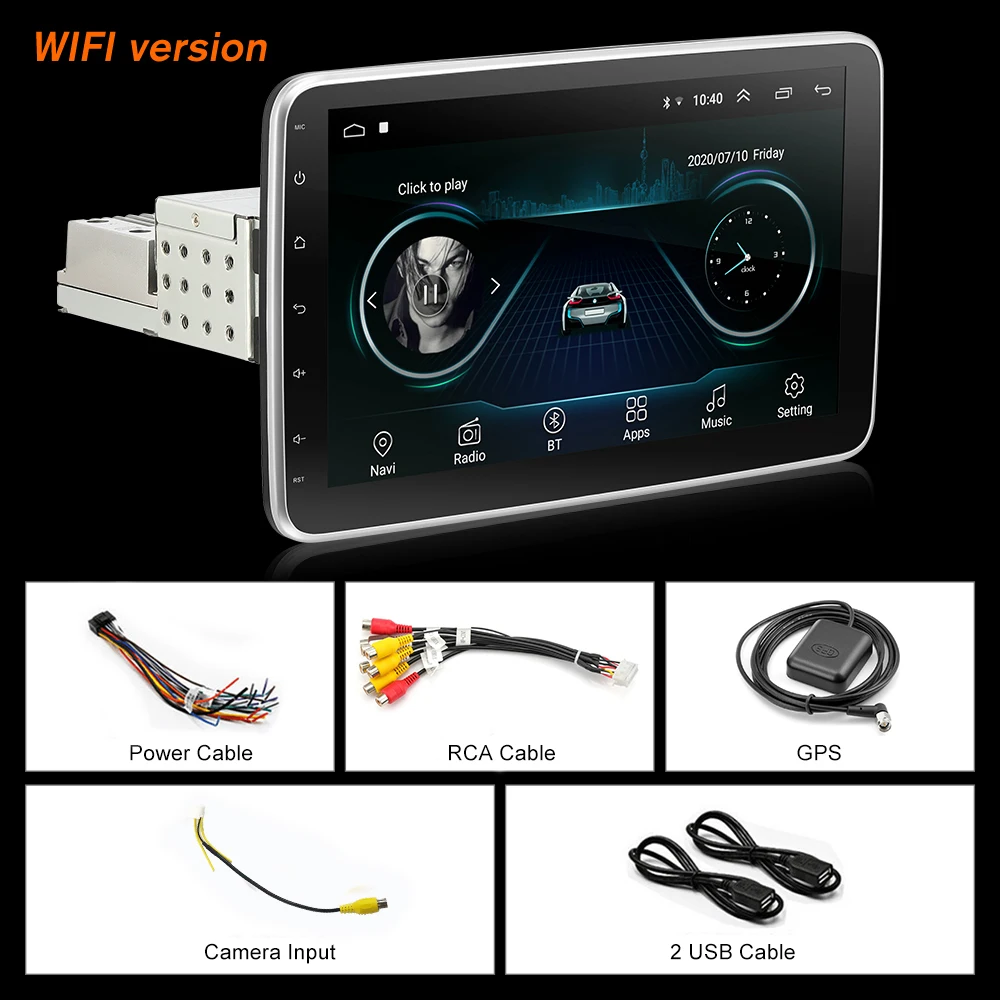

WIFI version：

-Operation System: Google Android 9.1

-CPU: MTK AC8227L 4*1.3GHz

-RAM: 1GB/2GB

-ROM: 16GB/32GB

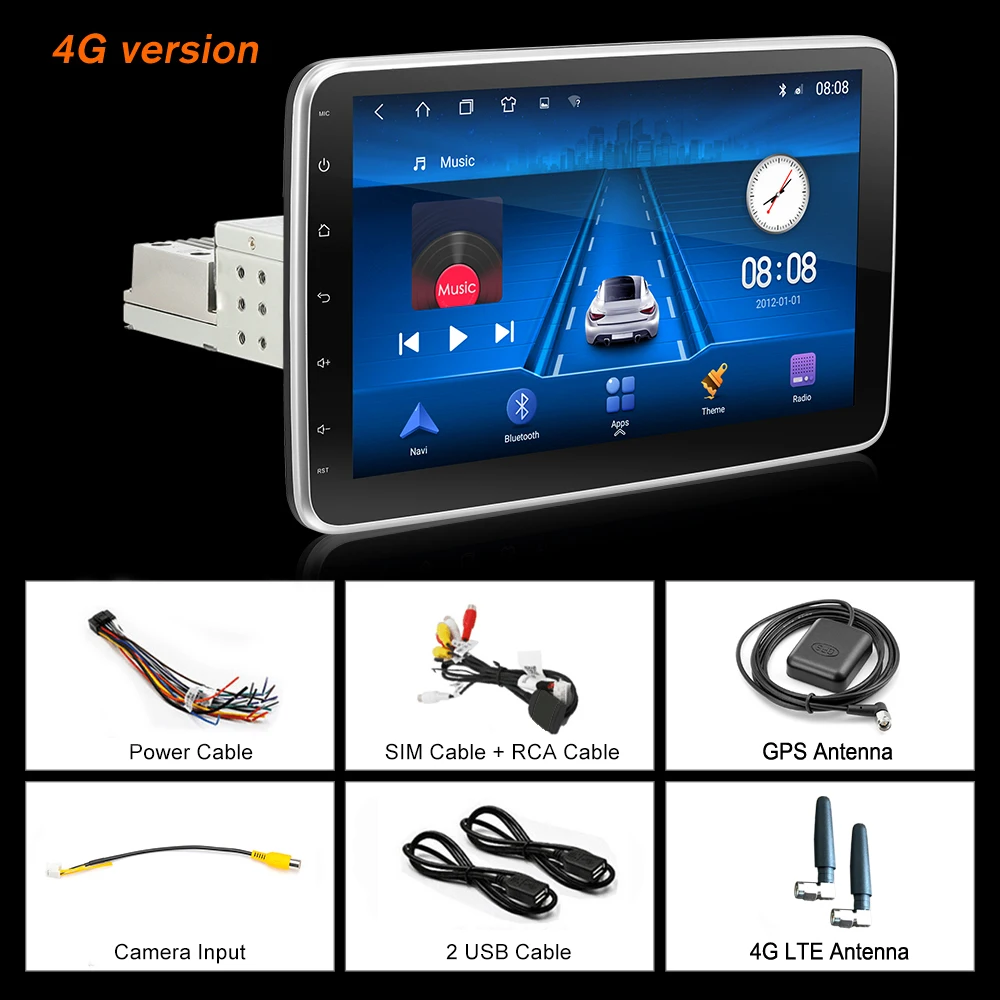

4G version:

-Operation System: Google Android 10.0

-CPU: MTK AC8259 8*2.5GHz

-RAM: 2GB/4GB/6GB/8GB

-ROM: 32GB/64GB/128GB

Display:

-Touch Screen: Yes

-Resolution: 1024*600

-Capacitive or Resistance Screen: Capacitive

-Built-in Clock and Calendar: Yes, show real time andcan use network-provided time

-Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week

-Change Apps-lcon Position: Yes

WiFi & 4G:

-WiFi: Built-in WiFi Modem, support 802.11b/g/n

-4GSIM card frequency band support:

 2G GSM900 band 8

 2G DCS1800 band 3

 3G DT-SCDMA band 34

 4G DT-LTE band 39/40/41

 2G GSM900 band 8

 2G DCS1800 band 3

 3G WCDMA band 1

 4G DT-LTE band 40/41

 4G FDD-LTE band 3

 2G CDMA band C0

 2G CDMA2000 band C0

 4G TD-LTE band 40/41

 4G FDD-LTE band 3

Internet:

-Explorer: Opera, UCWeb, SkyFile, Dolphin and moreexplorer for your selection

-Online Entertainment: Online Video,TV,Movie,Music,Radio, Video Chat

-Online Navigation: Online Google Maps Navigating

-Online Games: Yes, online play or you can download it from google play store

-Online Communication: WeChat,Twitter,Facebook, Skype,Gmail, Whatsapp etc.

-Read and edit Office Software: Yes, support Word,Excel,Powerpoint, PDF, TXT

Audio:

-Format: MP3/WMA/MP2/OGG/AAC/MA4/FLACIAPEWAV etc. Could play via song list

-Record: MP3,WMA

-Other: LRC synchronized display; ID3 search;Search by files; Album Picture; User-defined audio effect

-Amp lC: YD7388

-SNR: Noise rations:=90dB

Video:

-Format: Support AVI (H.264,DIVX,XVID),RM,RMNVB,MKV(H.264,DIX,xVID). WMA,MOV,

  MP4(H.264,MPEG,DIVX,XVID). DAT(VCD format). VOB(DVD format).PMP,MPEG,MPG.FLV
(H.263,H.264).ASF,TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)

-Play: Up to 1920*1080 Pixels,30Mb. luent play without light spot

GPS:

-Operation System: Android

-Support Maps: Android Map,IGo, Sygic, Kudos

-Voice Guidance: Yes

-Support 2D/3D Map Views: Yes

-Dual Zone: Yes, navigating while music playing

-Online Navi: Yes, support google maps online navigating

Bluetooth:

-Hands Free: Yes

-A2DP(Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth

-Bluetooth Music Control: Yes, play/pause/previous/next

-PB-Download: Yes, can download phonebook from mobile to this unit

-PB-Search: Yes, can use the first letter to search contact member in PB-Listings

-Calling Records: Yes, Dialed Call, Received Call,Missed Call

-Setup: Auto Answer,Auto connect,Device name

-Built-in Microphone: Yes, on the front panel

-Bluetooth IC: Bluebooth MT6625LN

Radio:

-FM Tuning Range: 87.5-108MHz

-FM Increment: 0.05MHz(EU)0.1MHz(US)

-FM Area: Europe/USA1/USA2IJapan/Russia

-RADIO IC: MT6625LN

-lt doesn't support XM radio, but you can access the same channels using the XM radio app.

USB:

-Position: 2 USB Port, can be connected with MedialCamera/DAB+ Box I Smartphone

-Capacity : 32GB

-Play MP5 Videos: Yes, can play RMVB Videos up to 108OP

-Touch Music Title to play directly: Yes

DVR:

-Built-in Car Recorder App: Yes, just connect a USB Camera to use this function

-Support HD CCD Camera: Yes,1080P

-Play recorded Video directly: Yes

-Storing Position: Nand Flash/GPs Card/SD Card/USB Storage can be changed

DAB(+)-IN:

-Built-in DAB Player App: Yes

-Connection Port: USB

-Power Supply to DAB+ Box directly: Yes

-Touch Control DAB+ Box on unit: Yes

DTV-IN:

-Built-in Digital TV Tuner: No

-External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box

-Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function

-Remote Control the TV Box on unit: Yes, you can use the Remoter of the TV Box to achieve this function

Additional：

-Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music

-Photo Viewer: Support JPS,BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4098*4096 Pixels

-Wallpapers: 5 live wallpapers,17 standard wallpapers,support DIY wallpaper from Gallery

-APK Installer: Support Android Package installer

-Support Torque Pro(0BD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function

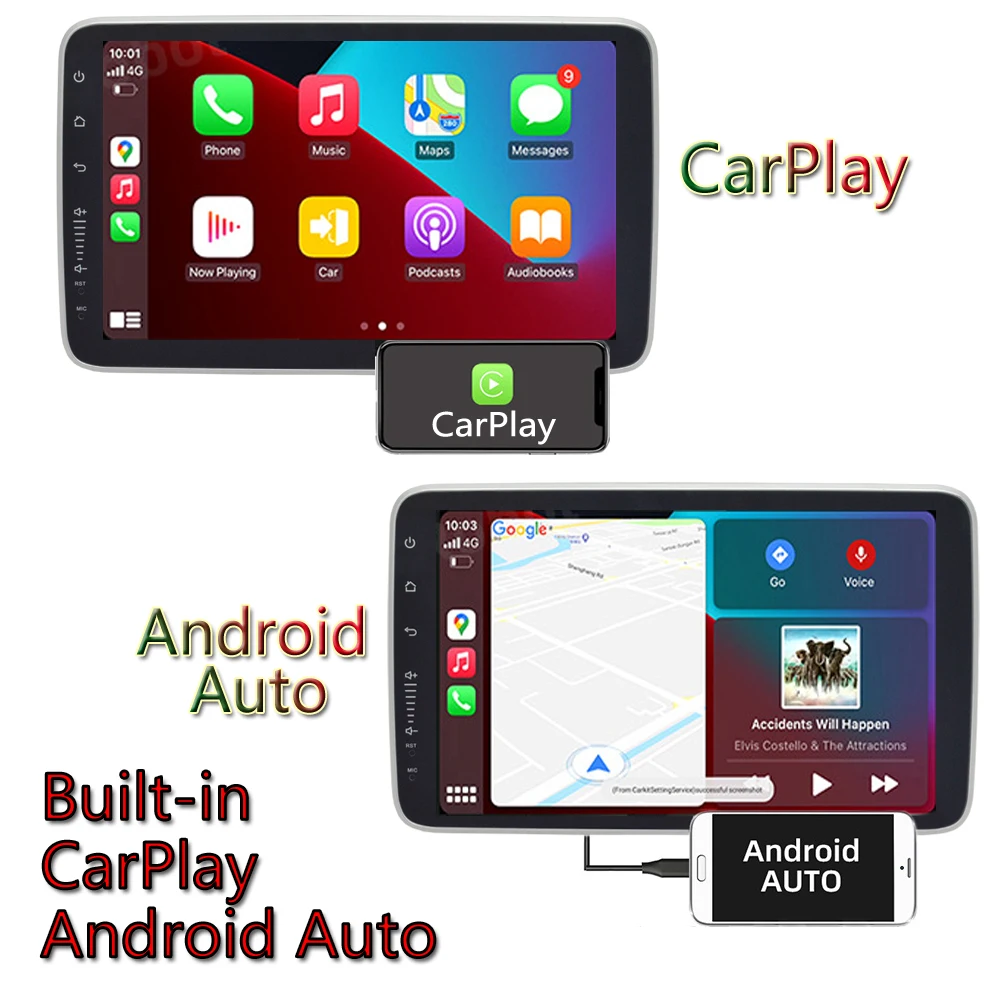

-Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone

-Support TPMS: YES (Not lncluded)

Setup:

-WiFi/Hotspot/Bluetooth: Yes

-Brightness level adjustable: Yes

-Wallpaper: Wallpapers/Live Wallpapers/Gallery

-Sound: Key Tone & Volume

-Storage: Display Internal Storage/Nand Flash/Connected Device Storage

-Apps: Running Apps display/force stop/uninstall

-Security : Yes

-Accounts: Yes

-Languages and Input: more than 45 Languages and choose input method

-Backup and Reset: Yes

-Date and Time: Setting Date& Time by yourself or choose GPS/network-provided time

-Accessibility: Yes

-GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio

-Driving safety: Watching Video, Reversing X-mirror/Valume, Reversing Trajectorylradar Display,Rear viewr uler

-Amplifier: Rock/PoplJazz/Classic/Flat/Voice/Custom

-Steering Wheel Control: Yes

Input:

-AUX Video In: One

-Rear-View Camera Video In: One

-AUX Audio In: R/L

-DTV Box In: One

-DAB+ Box In: One

-Car DVR In: One

-Radio Antenna In: One

-GPS Antenna ln: One

Output：

-Audio Out: Two(AUX R OUT,AUX L OUT)

-Surround Speaker Out: 4*50w

FAQ:
1.Why can't turn on the car radio ?
1.1Please check the Voltage of car radio : 12V

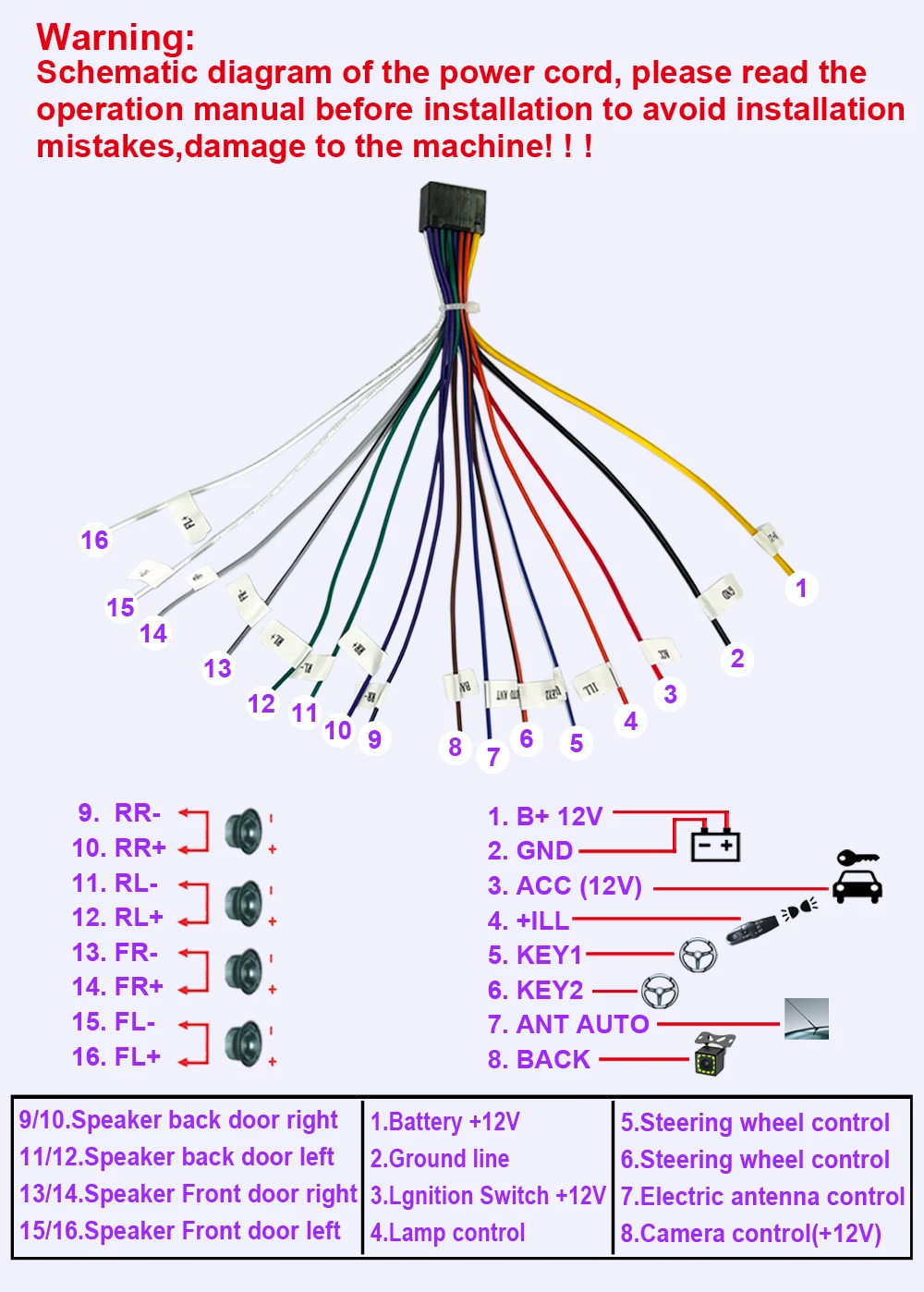

1.2When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
1.3Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

2.Why the car radio will show "No Signal" when we reversing?
Please check if the camera's line is properly connected to the car radio.
Note:The video port of rear camera must insert the "CAMIN" port of car radio.

3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?
Please turn off the "Video Warning" function in the settings,then will be OK.

4.Why can't search FM?
4.1: No radio antenna inserted;
4.2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;
4.3: The signal of your location is not good. Please go to a better place to test again
4.4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

5.Why can't connect the Bluetooth of car radio?
5.1.Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
5.2.Please try to use another mobile phone to test this function.
All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.

Please don't give us bad reviews and disputes before contacting us. If there is any problem with the product please contact us first, we will help you solve the problem.thank you!
